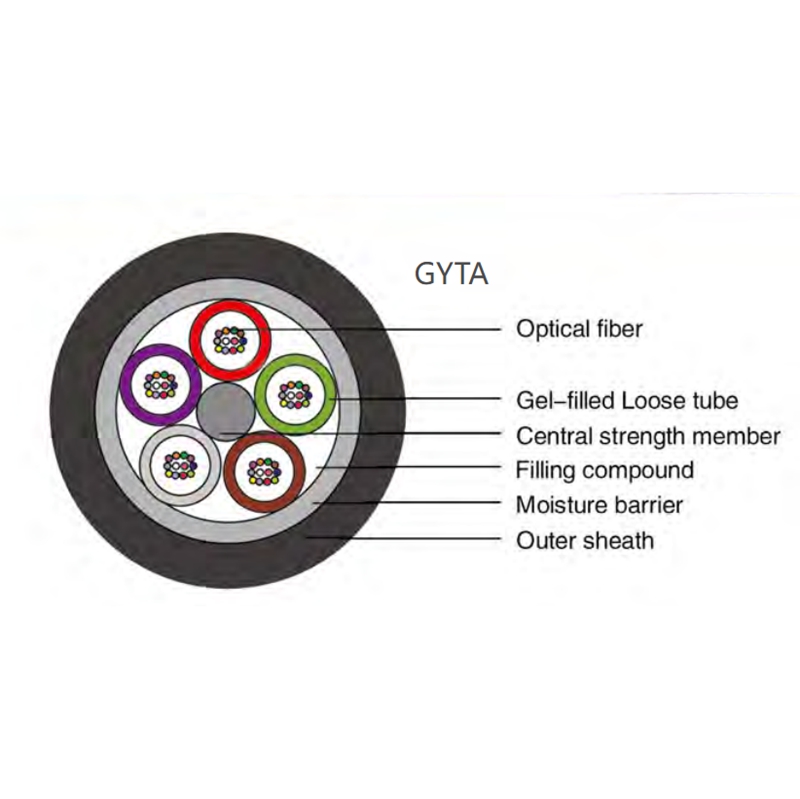

Structure diagram
Reference Standard：IEC 60794-3
Product Features：
The cable core is armored with metal tape outside, providing good protection
Fully filled waterproofing material, good effect in preventing longitudinal water seepage
Specification Parameters
Fiber count | Tensile Strength(N) | Crush Resistance(N/100mm) | Minimum bend radius(mm) | Nominal diameter（mm） | Nominal Weight (kg/km) |
Short term | Long term | Short term | Long term | Dynamic | Static |
36 | 1500 | 600 | 1000 | 300 | 20D | 10D | 9.4 | 85/100 |
48 | 1500 | 600 | 1000 | 300 | 20D | 10D | 9.5 | 85/100 |
72 | 1500 | 600 | 1000 | 300 | 20D | 10D | 10.0 | 105/115 |
96 | 1500 | 600 | 1000 | 300 | 20D | 10D | 11.9 | 130/145 |
144 | 1500 | 600 | 1000 | 300 | 20D | 10D | 14.4 | 190/210 |
288 | 1500 | 600 | 1000 | 300 | 20D | 10D | 16.4 | 255/275 |
Note:
D refers to the diameter of optical cable;
Typical values may be adjusted according to actual conditions;
Customized products can be designed based on specific customer requirements.
